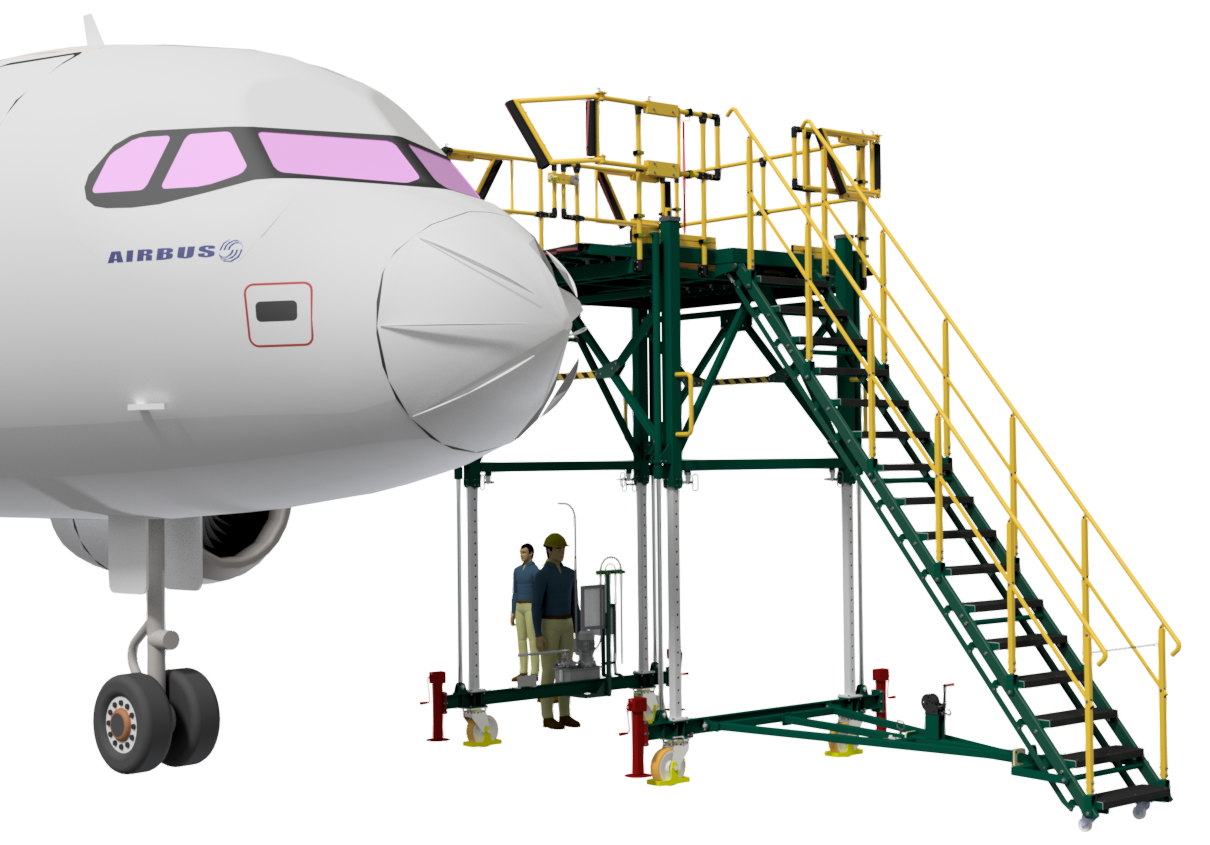

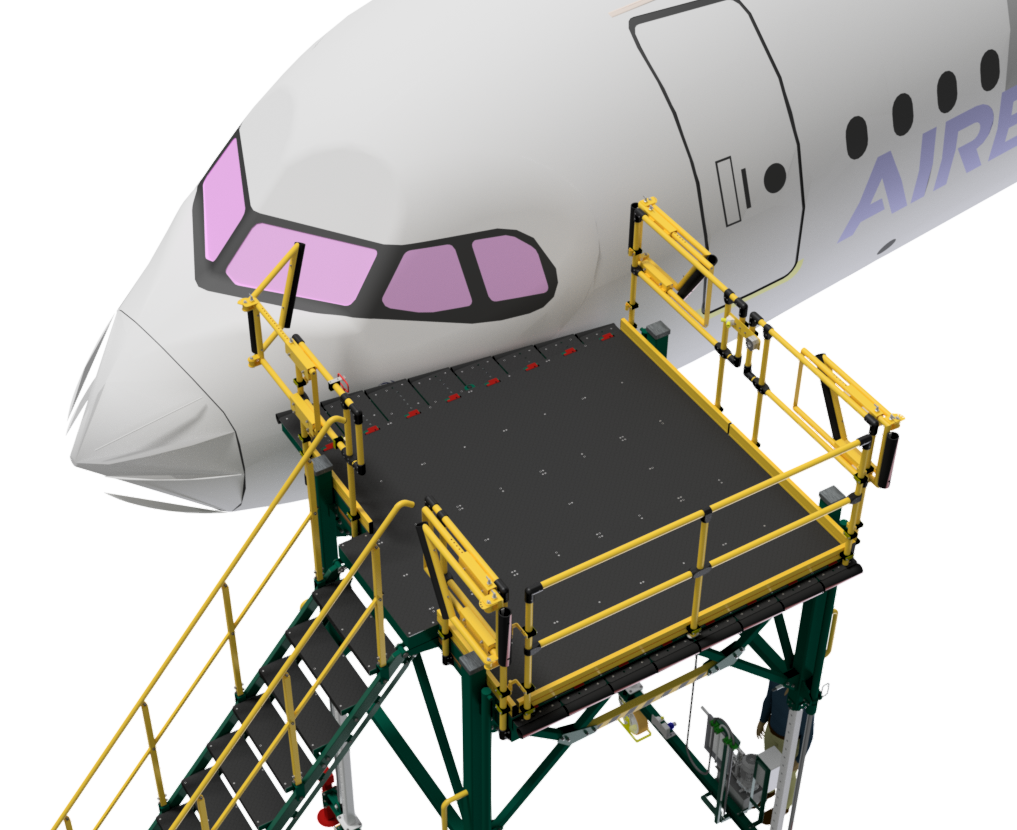

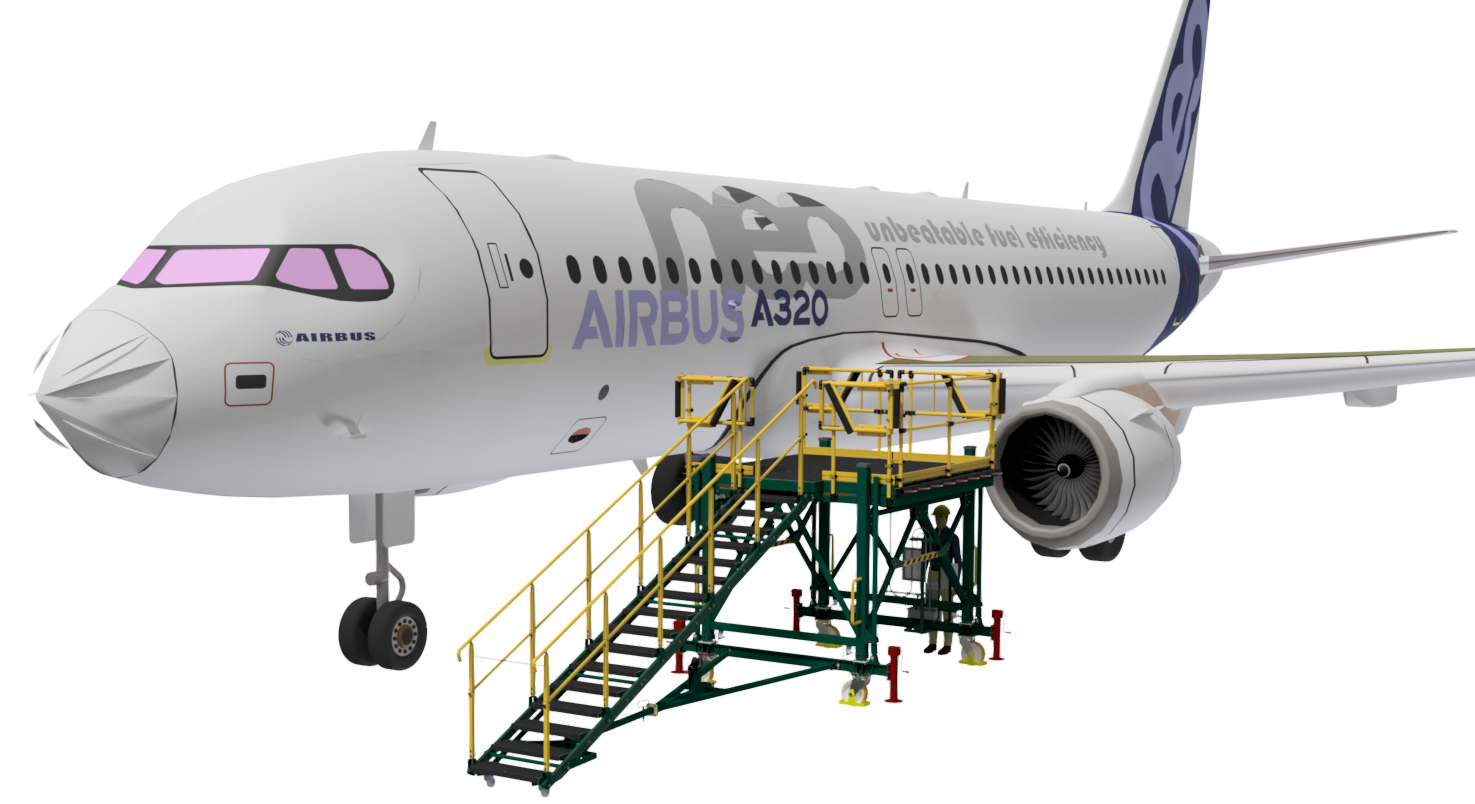

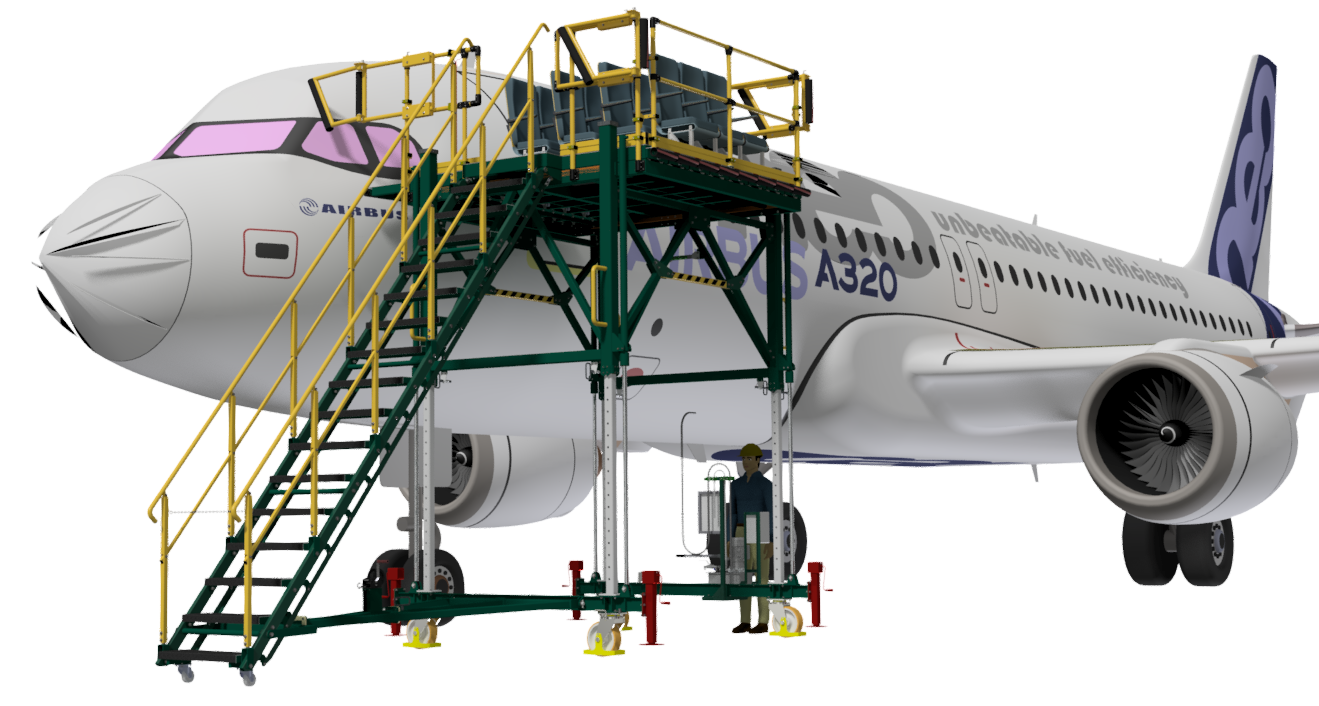

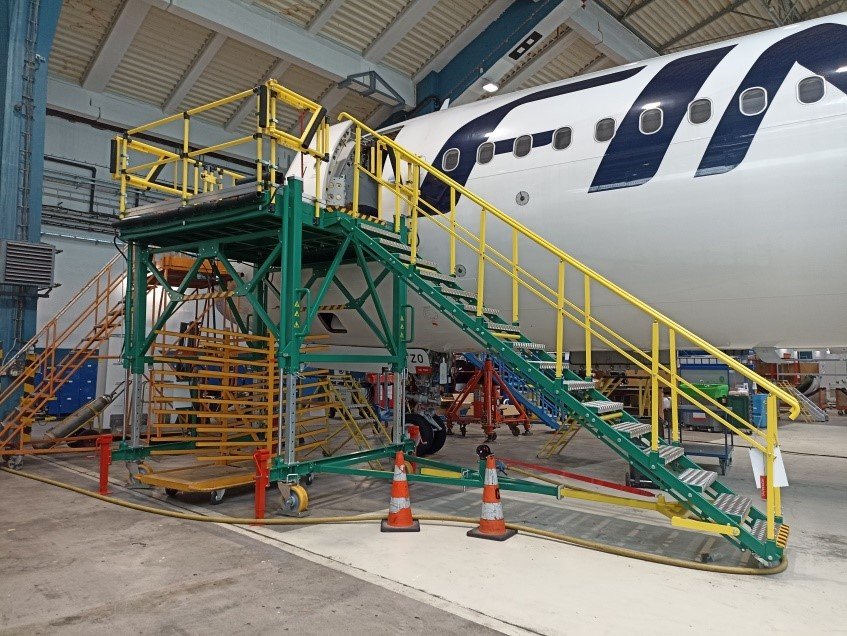

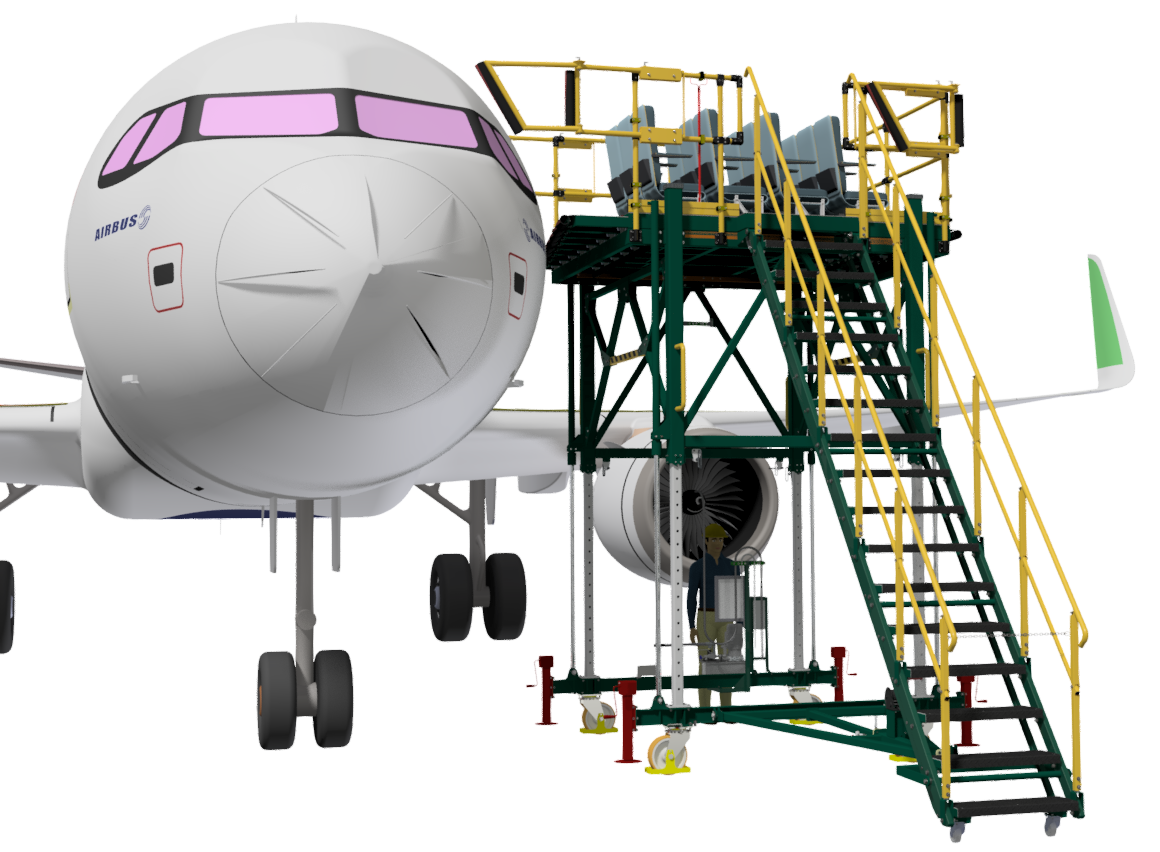

The access platform with stairs is intended for maintenance of the front part of B737NG, B737MAX and A320F CEO and NEO aircraft.

It is a platform that allows, in addition to normal work related to aircraft maintenance, to carry out work in particular on:

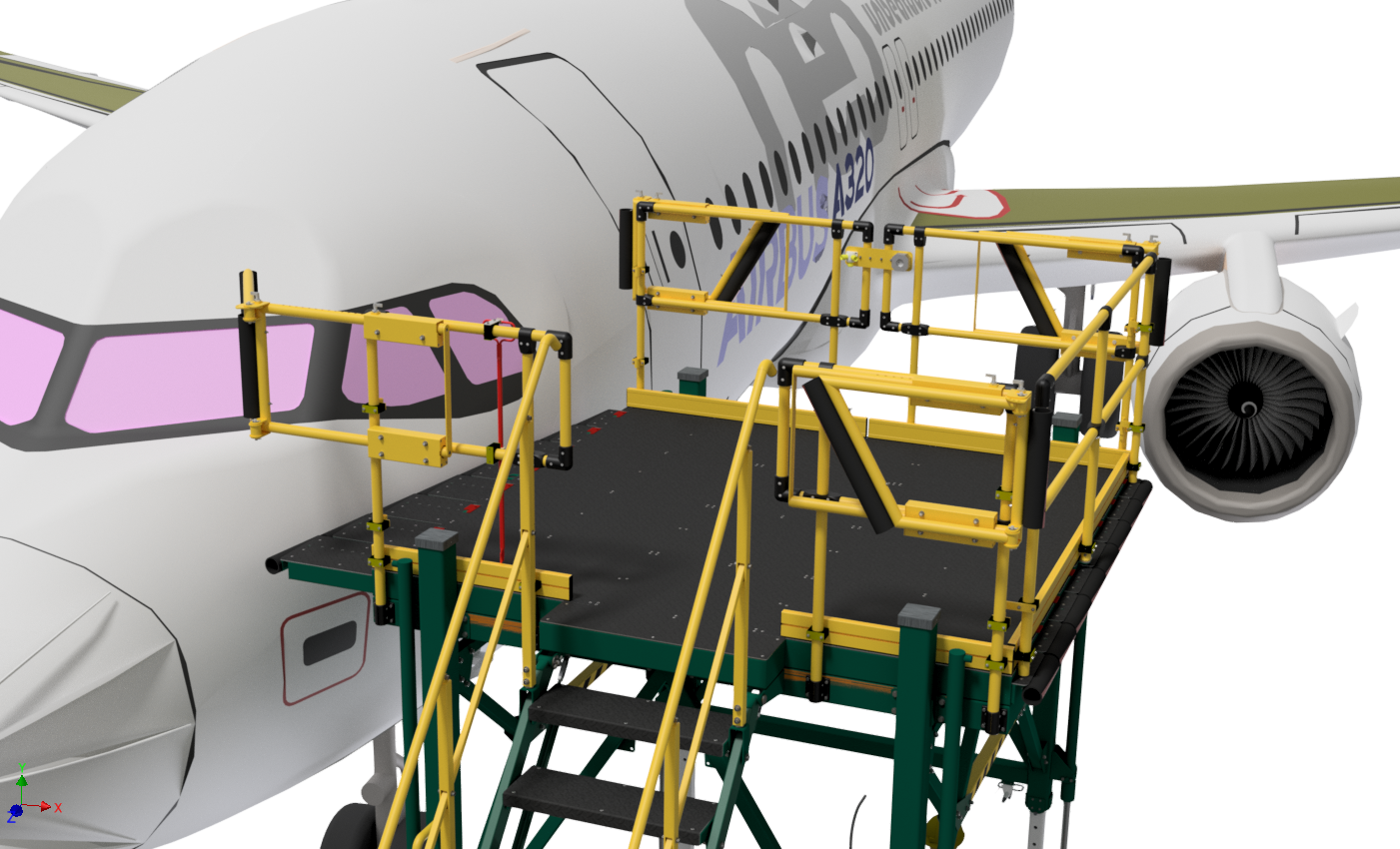

- cockpit window maintenance

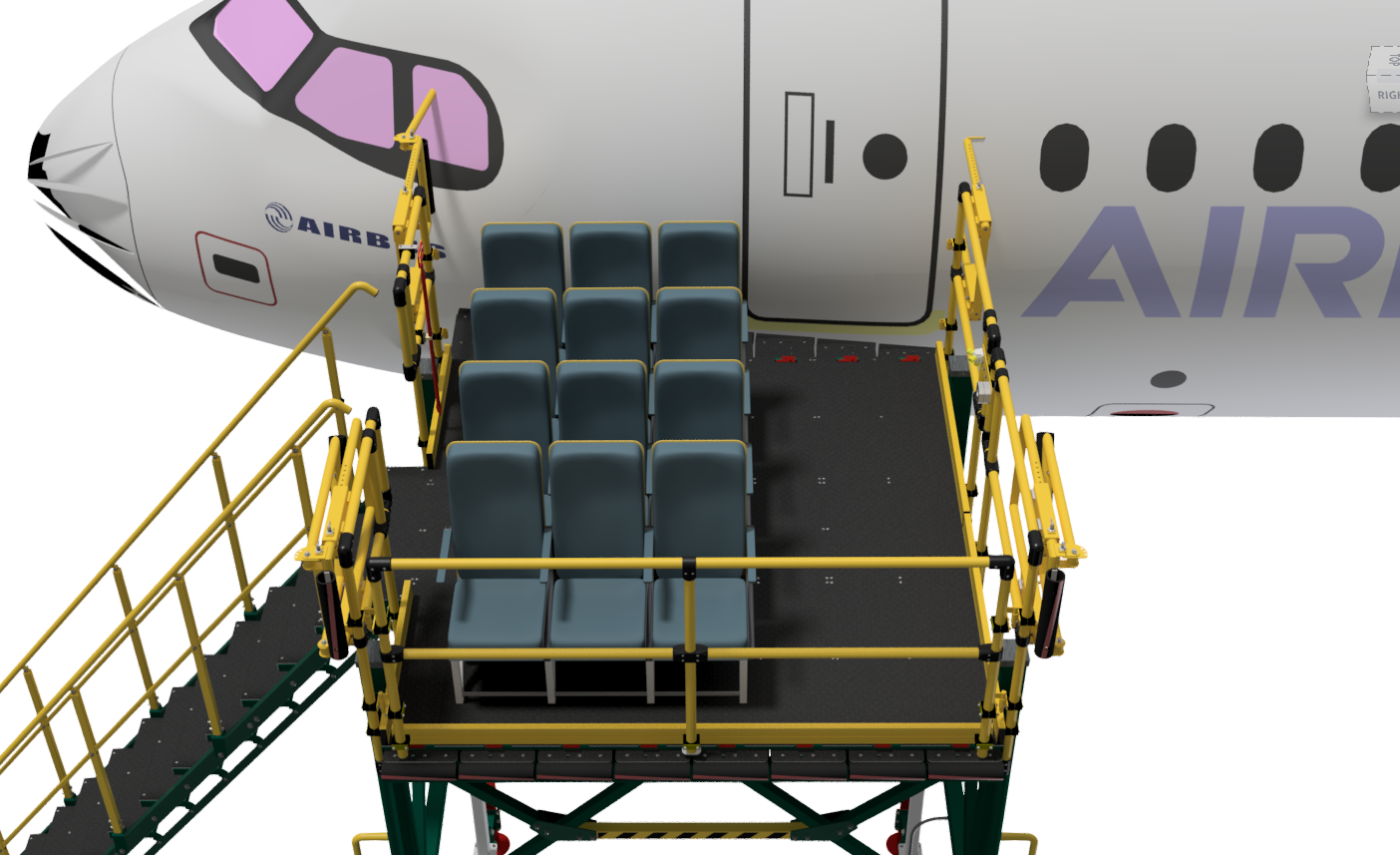

- disassembly and assembly of seats
- access to the front of the aircraft

Specifiactions
The height of the top platform

4300 mm - max. from ground

2500 mm - min

1800 mm - stroke

Width of platform 2700 mm
Length of platform 2636 mm
Nose-dock-ENpdf284.07 KB
